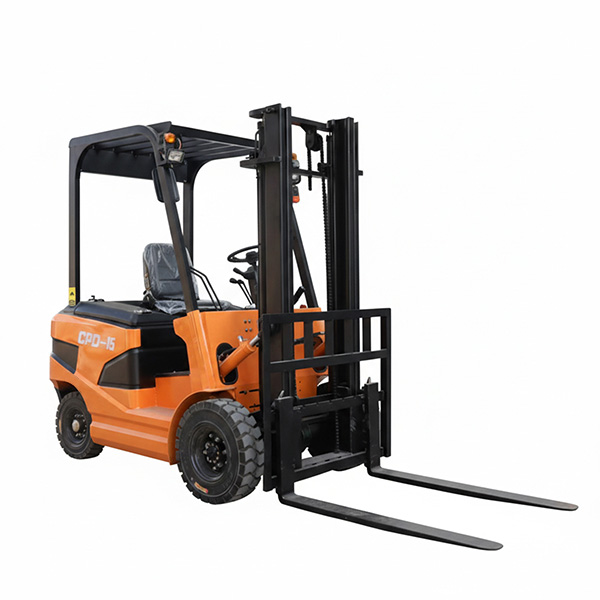

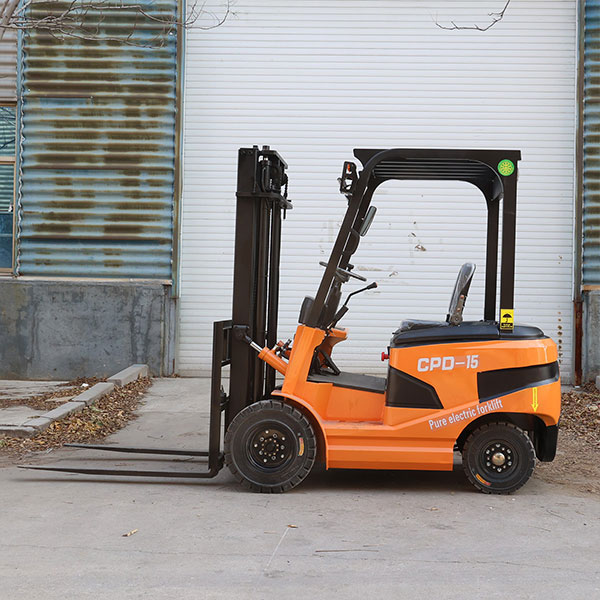

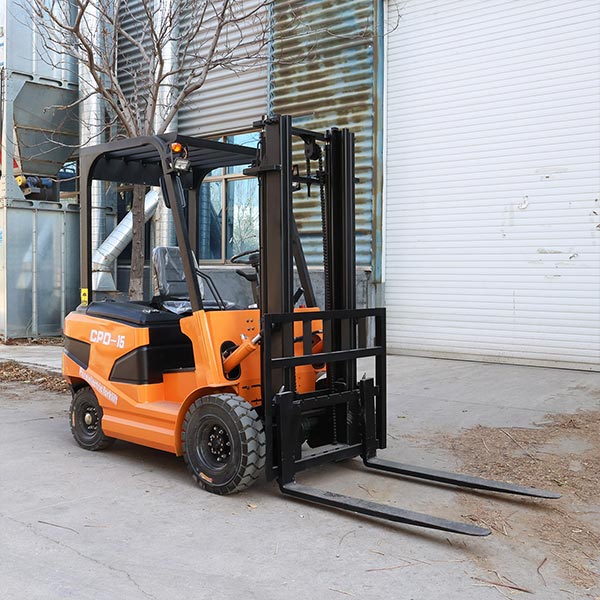

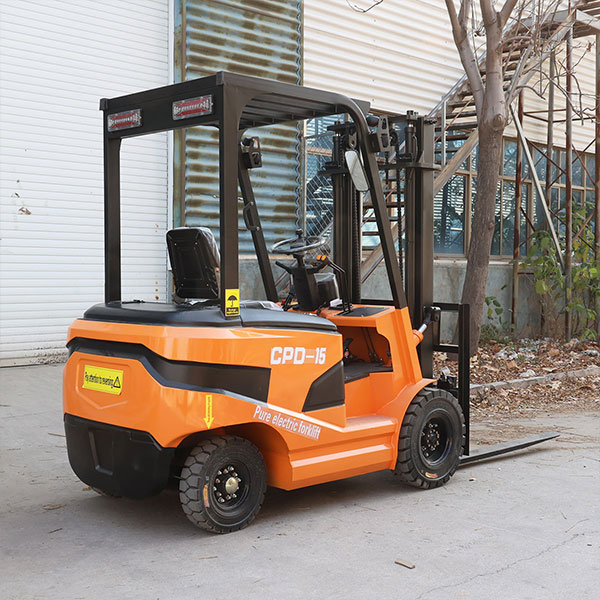

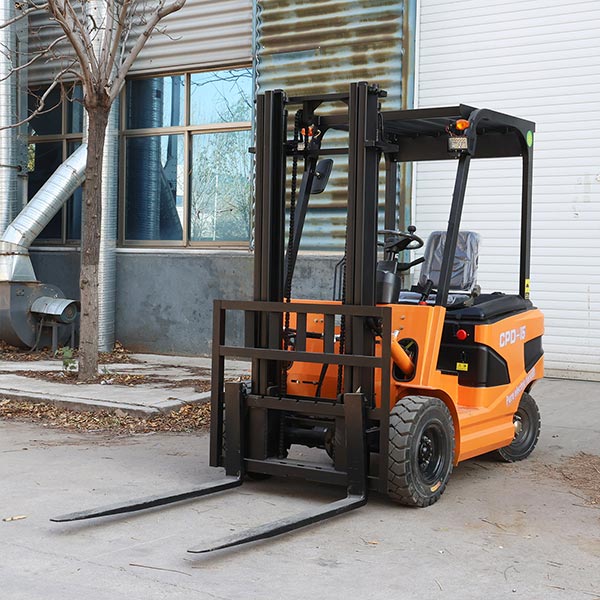

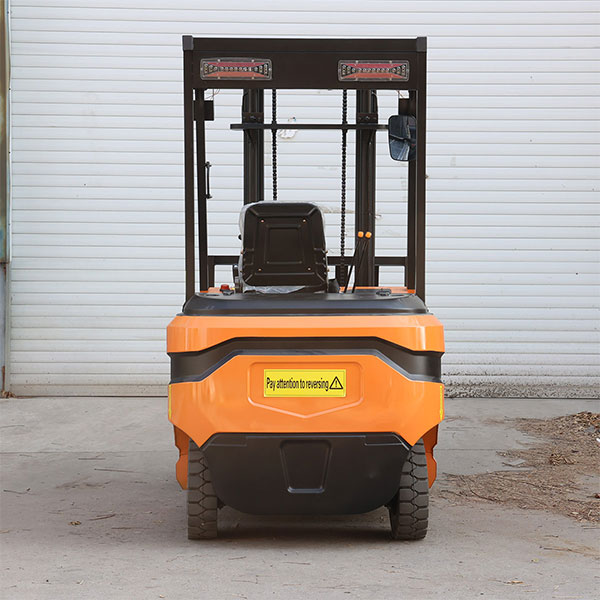

VY-CPD15 Electric Forklift: Agile and Powerful for Everyday Tasks
Exceptional Maneuverability in Confined Spaces
The VY-CPD15 Forklift Electric is designed for optimal agility, making it perfect for narrow aisles and tight warehouse environments. Its compact frame allows operators to navigate confined spaces effortlessly, enhancing efficiency in frequent, light-duty operations.
Reliable Performance for Daily Operations
Built with a 3KW drive motor and a 3KW lift motor, the VY-CPD15 Forklift Electric delivers consistent, reliable performance for everyday material handling. With a standard lift height of 3 meters and gradeability of 15% (empty) and 13% (full load), it handles typical warehouse tasks with ease.
Compact and Efficient Design
With overall dimensions of 233012002150mm and a minimum ground clearance of 9.5cm, this forklift is designed for easy storage and transport. Its durable 12# C-section steel mast ensures strength and stability, while the front and rear tire specifications (650-10 / 500-8) support smooth maneuvering on various surfaces.
Safe and Long-Lasting Operation
Equipped with an oil brake system and powered by a 60V battery with 70A capacity, the VY-CPD15 Forklift Electric offers safe and stable handling. Its net weight of 2.2 tons ensures both stability and durability, providing long-term value for warehouse and industrial operations.
| Model Number |
1.5Ton |
| Tonnage |
1.5Ton |
| Standard Lift Height (M) |
3M |
| Minimum Ground Clearance (cm) |
9.5cm |
| Mast Tilt Angle (Front/Rear) (°） |
6°-12° |
| Mast Type |
12# C-section steel |
| Gradeability (Empty load/Full load) |
15/13 |
| Overall dimensions (L * W * H) |
2330*1200*2150mm |
| Tires |
Front 500-8, Rear 400-8 |
| Braking Method |
Oil brake |
| Drive Motor Power (KW) |
3KW |
| Lift Motor Power (KW) |
3KW |
| Operating Voltage (V) |
60V |
| Standard Battery Capacity (A) |
70A |
| Net Weight (T) |
2.2T |
| Optional |
4 m(2-stage mast); 4 m(3-stage mast); 4.5 m(3-stage mast) |
| Middle Oil Cylinder; Dedicated steel mast |
| Waste clamp with tipping attachment; Waste clamp Without tipping attachment |
| Distance Adjuster, 2M; Side shifter; |
| Bale clamp; Log Clamp; Barrel Clamp; Flat Clamp; Cylindrical Clamp |
| Rotating Fork; Tipping Fork; Multi Pallet Fork; Soft Pack Fork |
| Tire Clip; Flat Bucket; Bucket |
| Snow Shovel; Grapple; Ejector |
